Step 1: Installation

  • Connect the adapter to an HVE valve

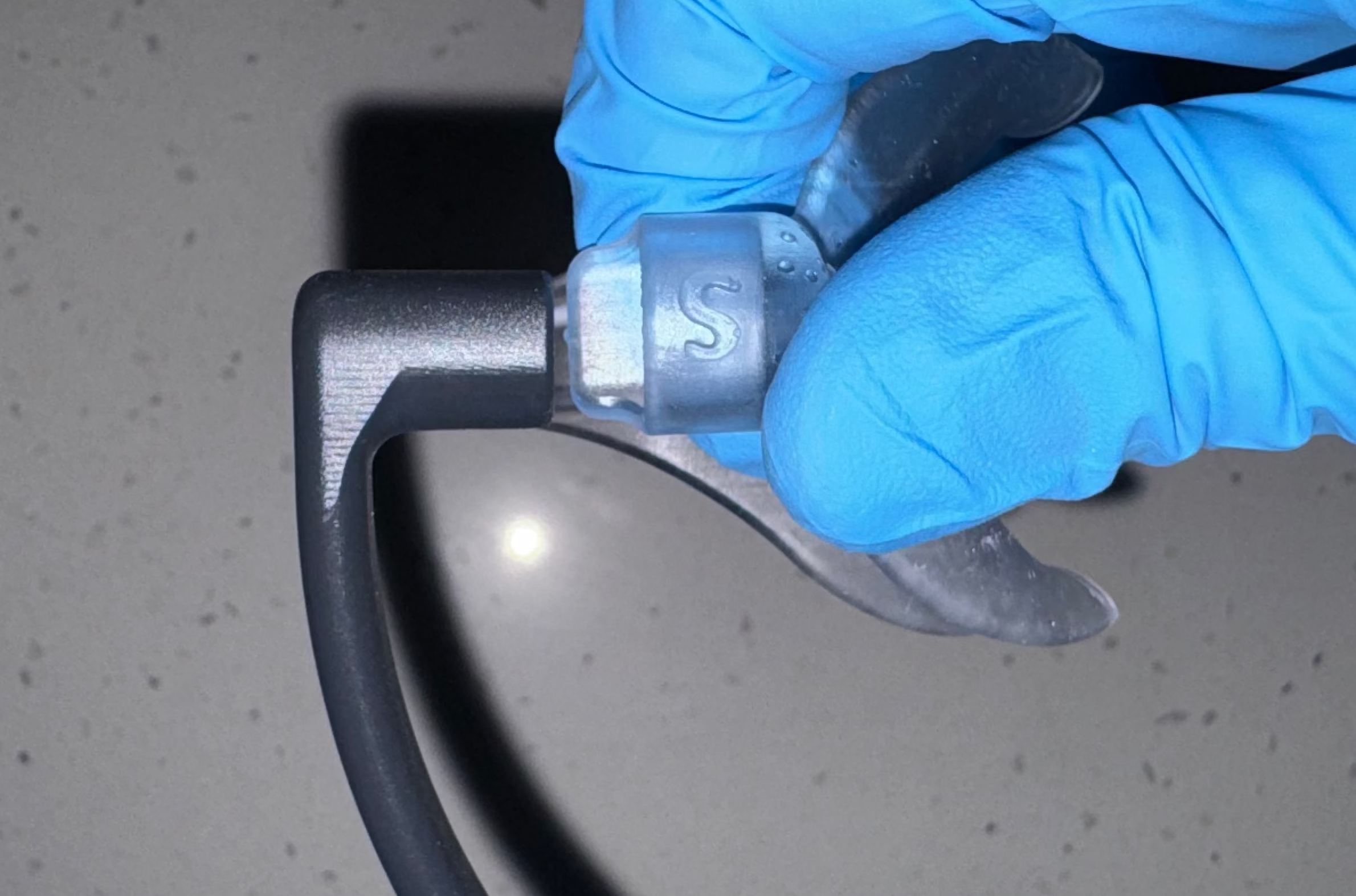

  • Insert the Ergo Mouthpiece into the U Connex

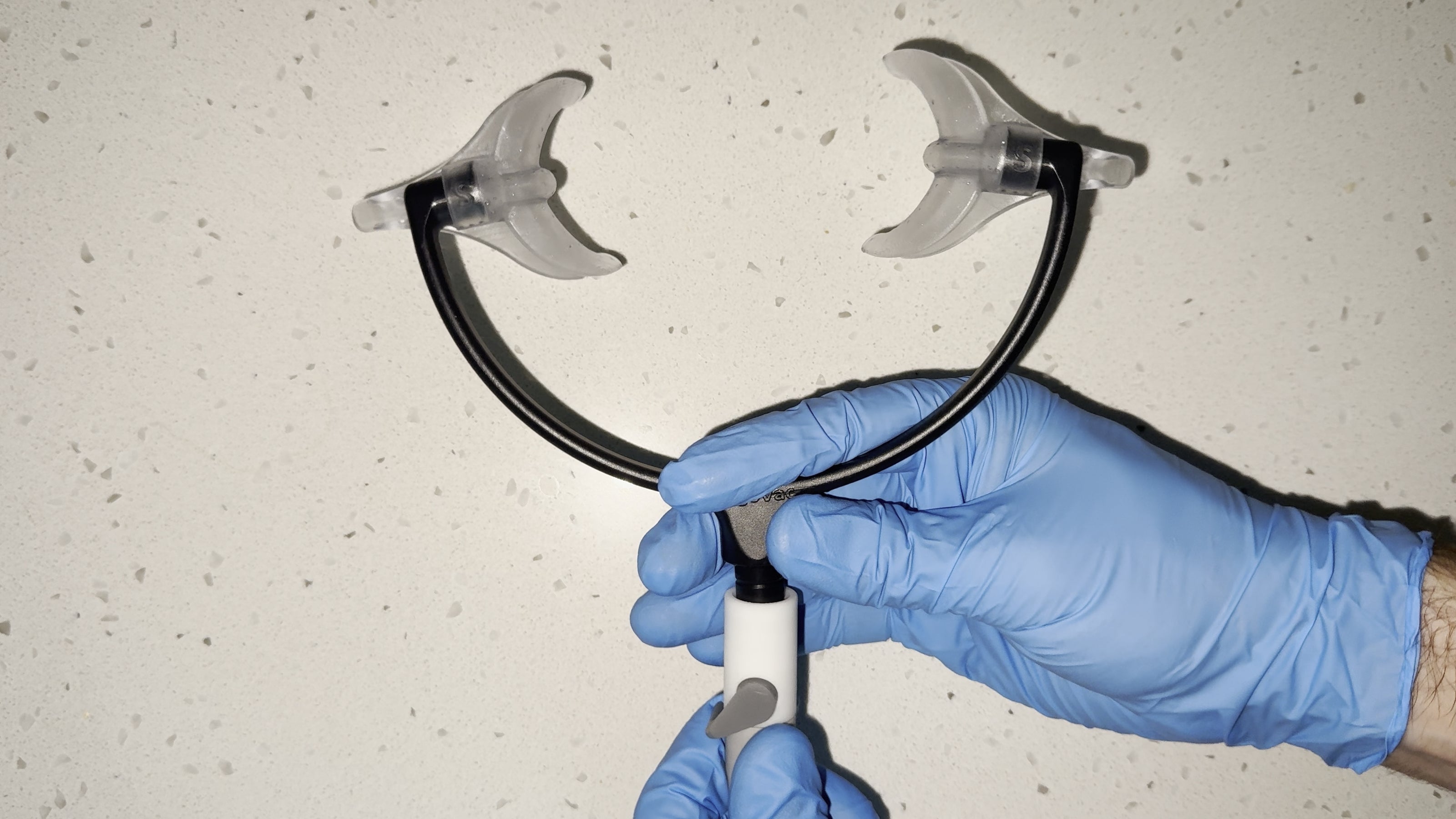

  • Connect the U Connex to the vaccum hose via the quick connect

1 3

Step 2: Use

  • Introduce ErgoVac to the patient

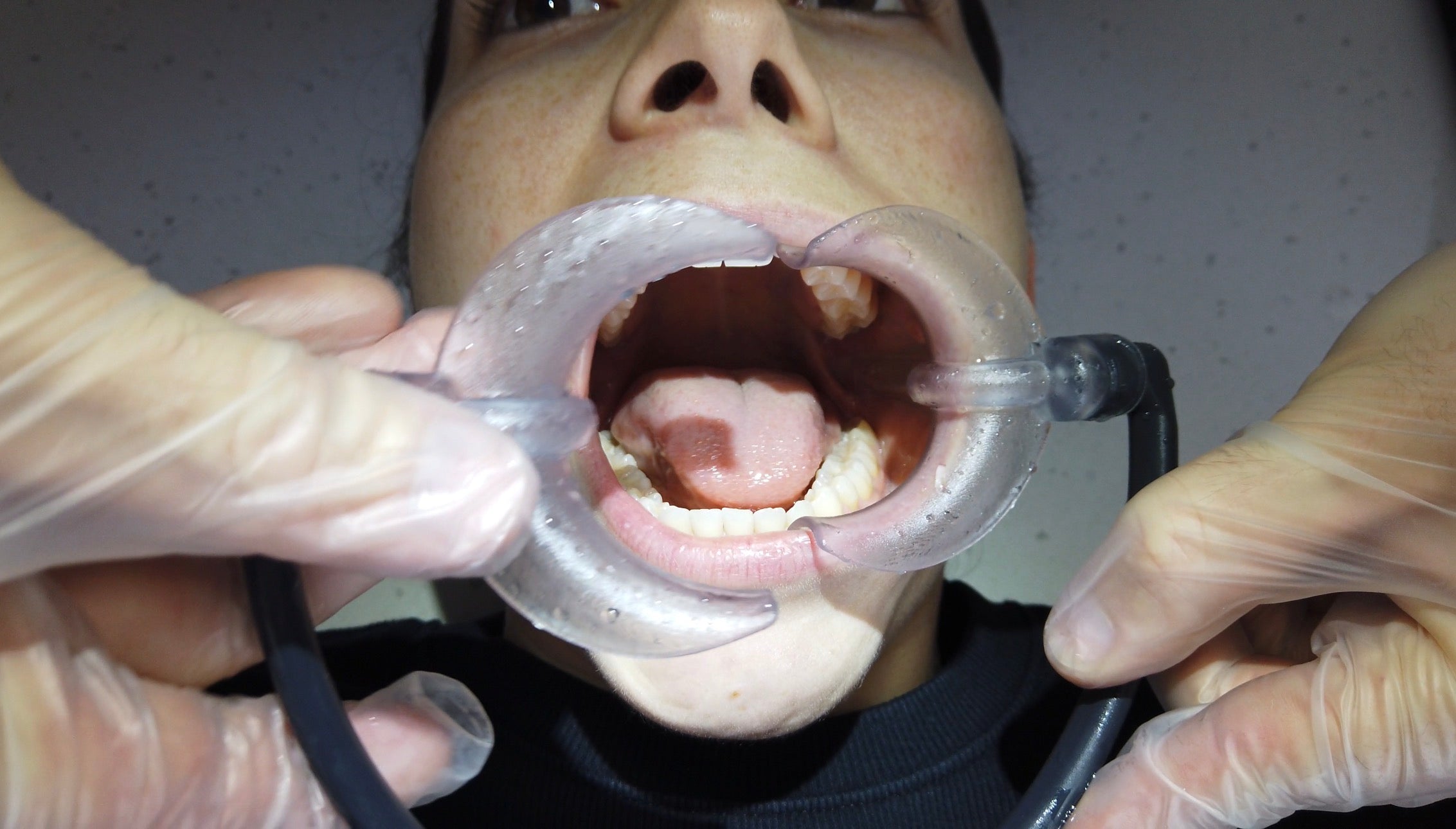

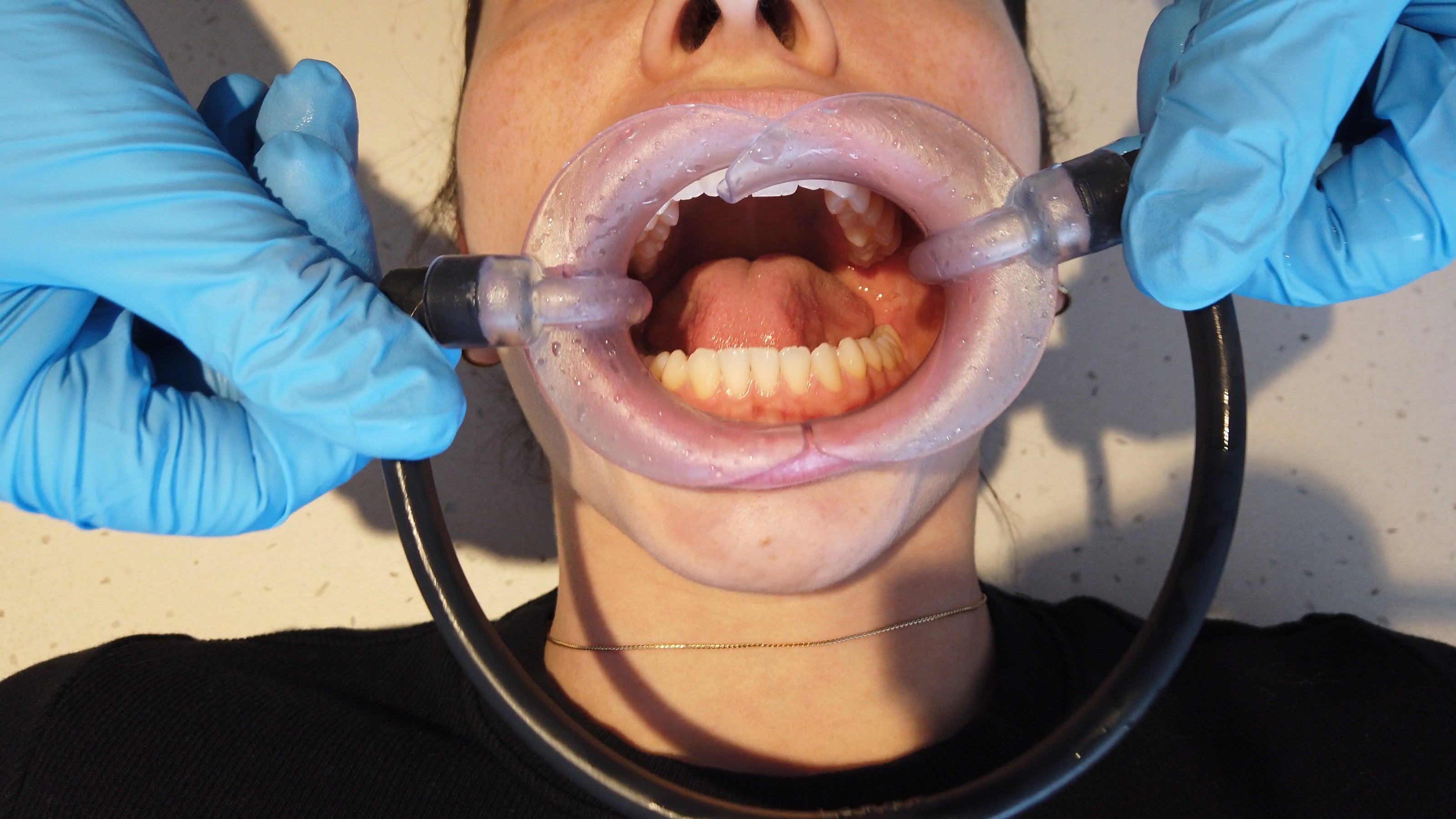

  • Place the Ergo Mouthpieces one at a time in the patient's mouth, positioning the lips around both mouthpieces

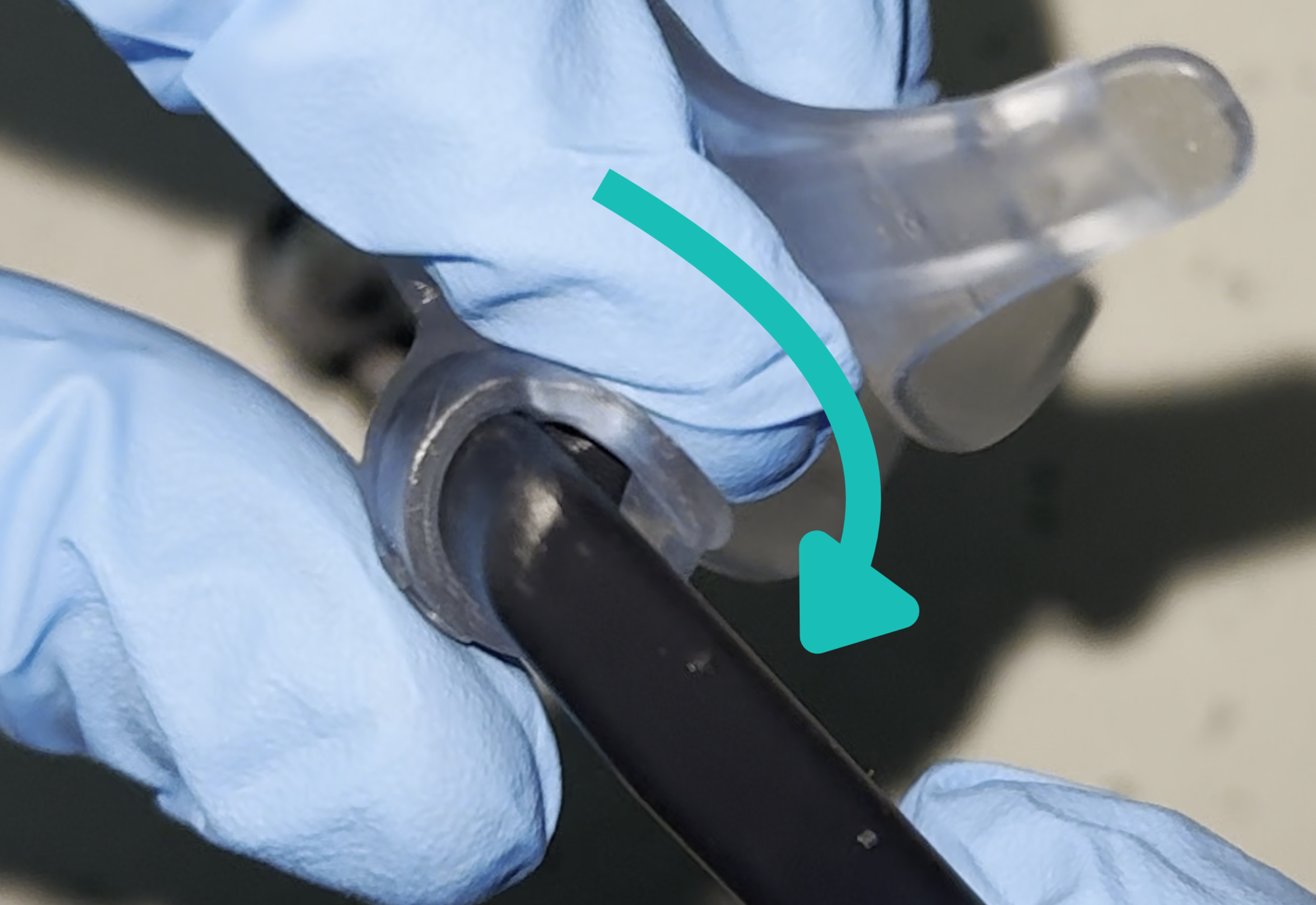

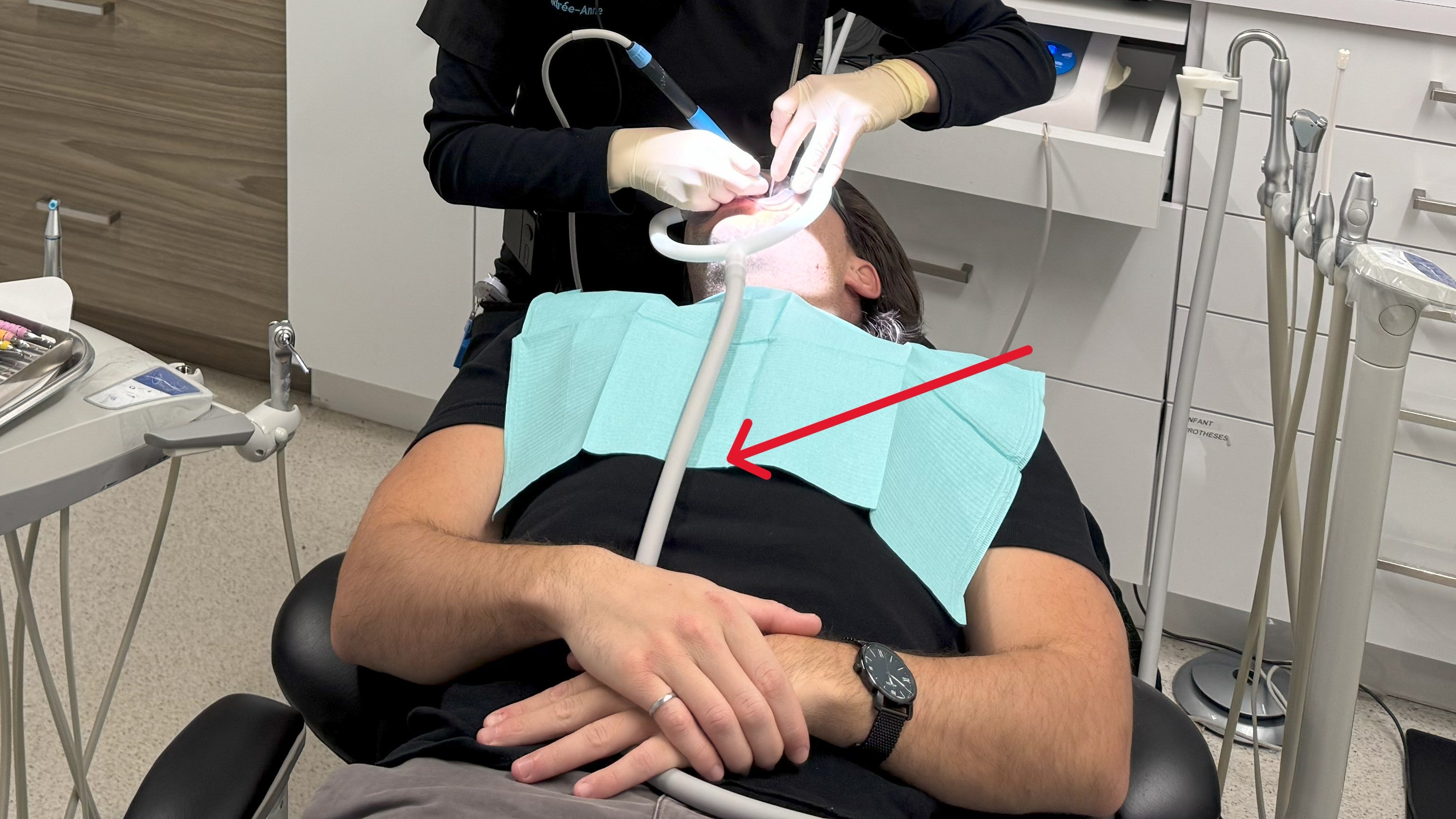

  • If necessary, align the hose straight with the device and rotate the U Connex for a proper fit

  • When the procedure is complete, remove the device one side at a time

1 4

Step 3: Sterilization

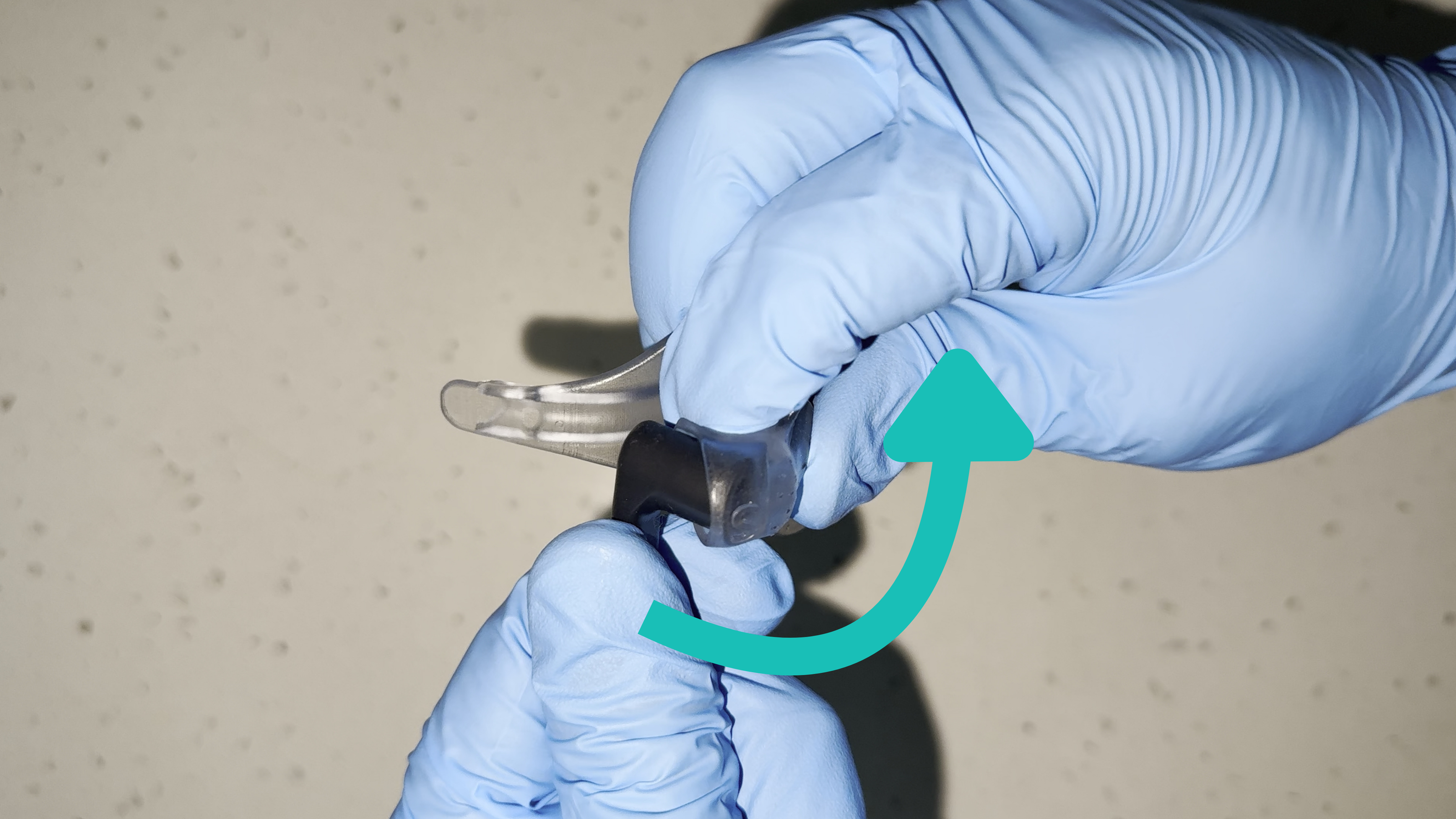

  • Disassemble the system

  • Brush the cavities of the Ergo Mouthpieces and the U Connex under running water with soap

  • Air dry the Ergo mouthpieces

  • Place the Ergo mouthpieces in an autoclave pouch and start a steam autoclave cycle

  • Purge the U Connex and the connection system with a cleaning solution (enzymatic)

  • Clean and disinfect the U Connex and the connection system using disinfectant wipes

1 6

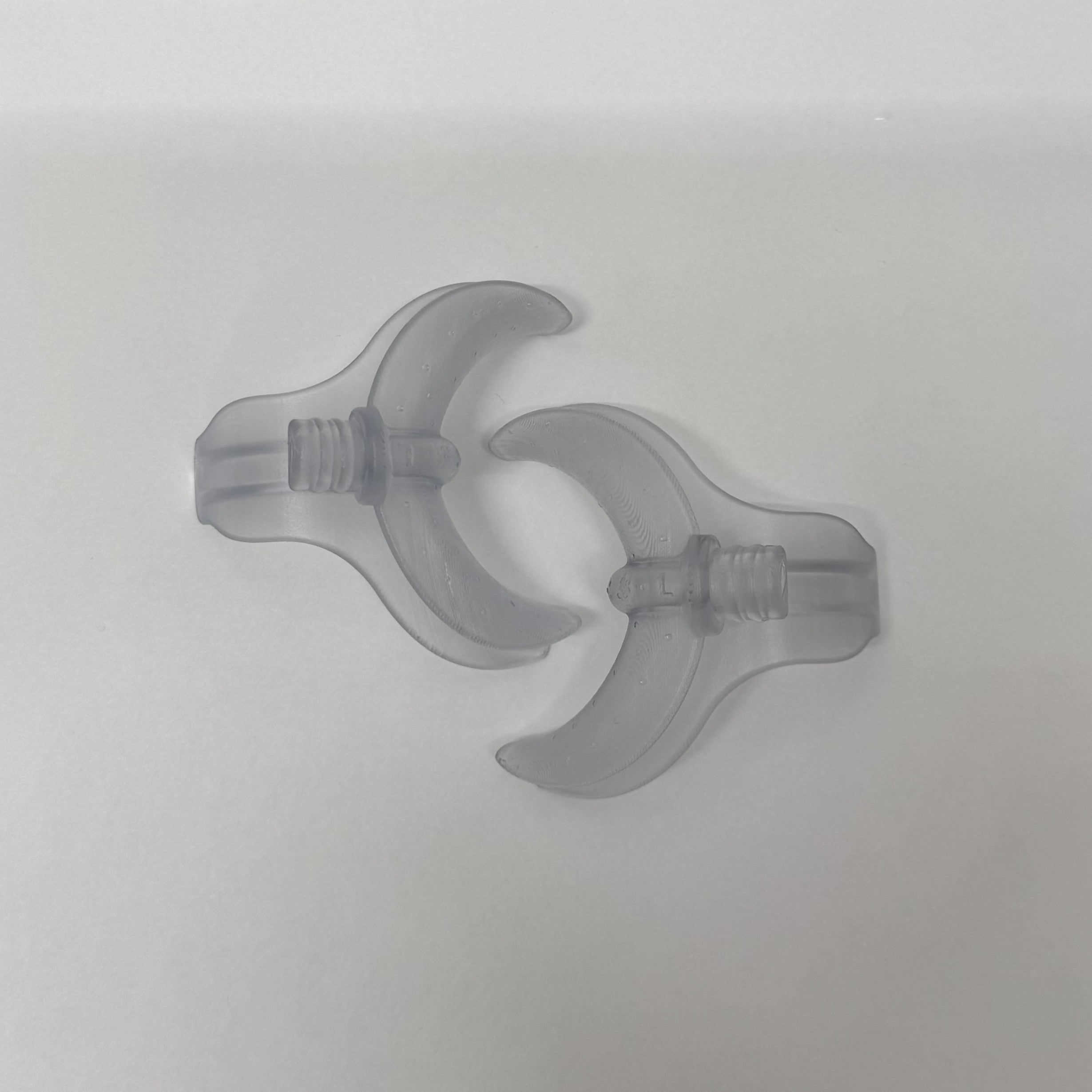

Sterilization of Ergo Mouthpieces
Ergo mouthpieces are compatible with autoclave sterilization. It is recommended to use a wrapped cycle at 135 °C (273 °F). A wrapped steam cycle at 121 °C (250 °F) is also possible. For more details, refer to the full table below.

Mouthpieces must be sterilized before first use and between each patient. Over time, they may become yellowed; this change is purely cosmetic and does not affect their performance or safety. It is recommended to replace the mouthpieces after approximately 50 sterilization cycles or at the first sign of damage.

Disinfection of Other Components
The other parts, including the U Connex, are considered non-critical instruments, meaning they do not come into direct contact with mucous membranes but may become contaminated with blood or bodily fluids. These components must be cleaned and disinfected after each use but should not be sterilized.

Référence : Lignes directrices : Prévention et contrôle des infections et retraitement des dispositifs médicaux

Types of Cycles
Types of Cycles Exposure Temperature (minimum)1 Exposure Time (minimum) Drying Time (minimum)
Wrapped (plastic) 250°F (121°C) 20 min 30 min
Wrapped 270°F (132°C) 4 min 30 min
1 Do not sterilize Ergo Mouthpieces at temperatures higher than 135°C
